HAMO PG-1300
Hamo Cleaning equipment for industrial and life sciences fields are special cleaning equipment designed to process critical components such as, fermentation containers, big bottles, glassware, components of filling and packing-machines, mixers, cones, palettes, boxes, tabletting-tools, and other parts from the pharmaceutical, diagnostic, cosmetic and food industries.
Chamber

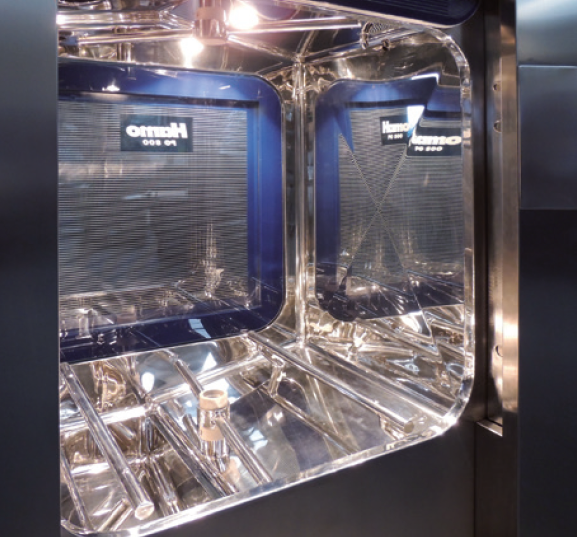

The polished chamber (with only three openings) and tubing are designed to fully drain. The chamber ceiling and the chamber are designed with slopes to achieve a quick and full emptying. On request the chamber is equipped with internal lighting, to monitor the process during cleaning.
Technical Execution / Tubing / Components
The machine are designed, built and documented according the latest requirements of the pharmaceutical industry, such as EHEDG, FDA, cGMP and GAMP. As for example:
- Chamber and welding surface quality RA ≤ 0,8 mm;
- All radius minimal 30 mm electropolished;
- All piping sanitary/aseptic execution (Tri-Clamps);
- According ISO 11864-3;
- All membrane valves without dead legs;
- Membranes made out PTFE/EPMD.
Load- and Unloading
By means of an external transport trolley the machines are loaded and unloaded. Automated systems with feed- in and feed-out roller conveyors are also available.
Dosing Pumps
Up to four detergents or additives are dosed (monitored by a flow-meter) into the machine; the dosing volume set values are part of the wash-cycle setting; the pumps are integrated in the machine.
Utilities
All media-supplies (except drain) are from above:
Control
The machine is controlled via a modern Control-system (Siemens) which stands for reliability and flexibility.The visualization (HMI) runs on a touch screen. The cleaning cycles are individually configured to be adapted to the soiling and the specific requirements of the wash-load. The integrated user management on the software allows easy configuration of the access-levels of each usergroup. Specific user-group have different access-rights; therefore configuration or changes on cleaning-processes can only be made by authorized personal.
Technical Data
Hamo |
PG-1300 |
|---|---|
External Dimension mm (inches) Width Height Depth |
|
2300 (90,6) |
|
2950 (116,2) |
|
1700 (66,9) |
|
Usable Dimension mm W x D x H (inches) |
1300 x 1300 x 1000 (51,2 x 51,2 x 39,4) |
Regulations |
CE EHEDG, FDA, EMA, cGMP as well GAMP FDA 21 CFR part 110: Food FDA 21 CFR part 210/211: Pharma FDA 21 CFR part 177: non ss-parts FDA 21 CFR part 11: Electronic records |
Certificates |
Material certificate 2.1, 2.2, 3.1 |
Material |
Stainless steel in contact with wash media AISI 316L / 1.4401 / 1.4404 / 1.4435 electro polished |
Electric |
3x 400V, 50 Hz |
Water |
Four different water (eg Tap water, WFI, Demi, Osmose etc) |
Steam |
6–8 bar, oil free |
Steam |
Saturated steam 2–6 bar (optional) |
Drain |
50 l/min gravity |
